Fish Hook
« on: May 22, 2012, 10:23:50 AM »
Per the request from Red, here's how to make a whipped fish hook

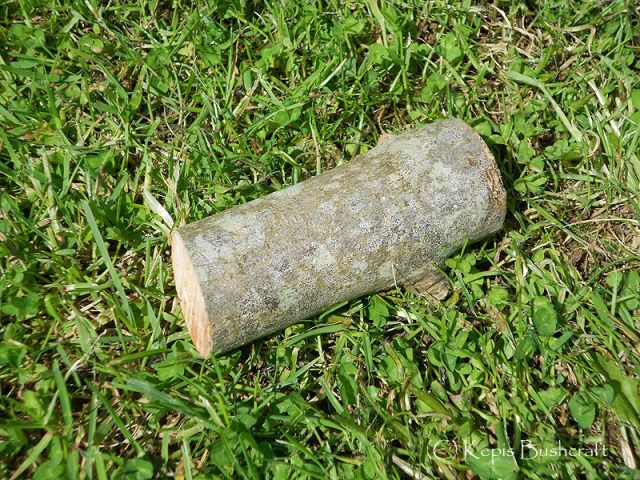

1 - Take a small log, approx 1" in diameter and 2" long, it helps if it's straight grained and splits easily, but not essential

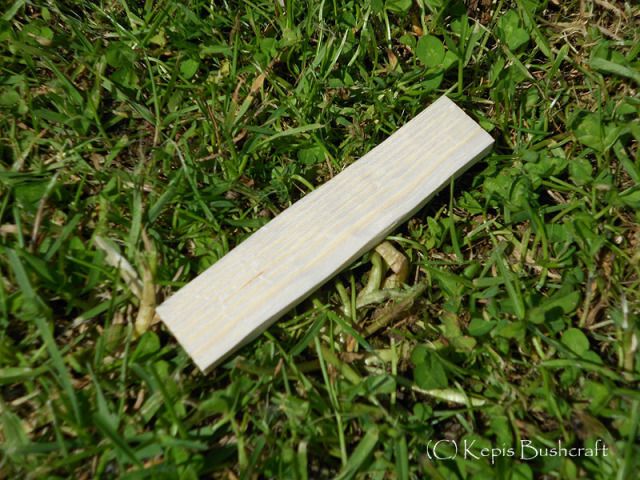

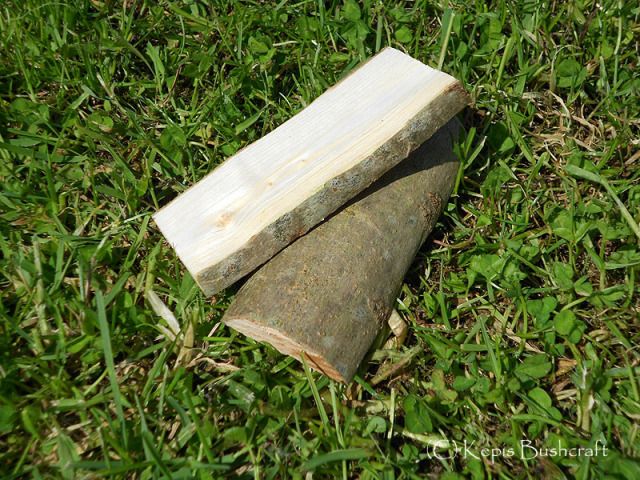

2 - Split the wood and make yourself a small plank approx 1/4" thick



3 - Split this in half

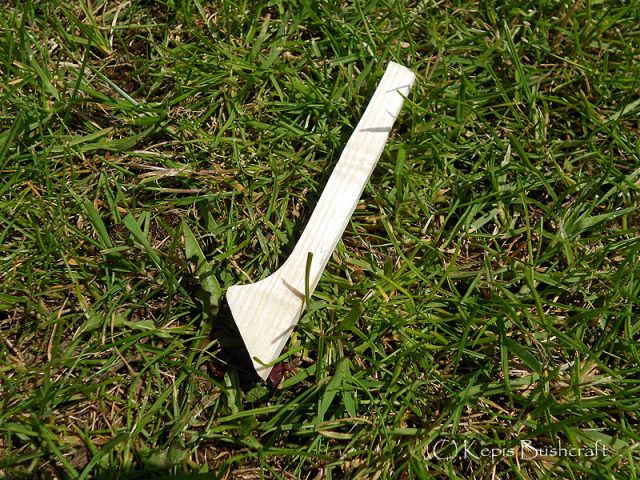

4 - and whittle it into this shape

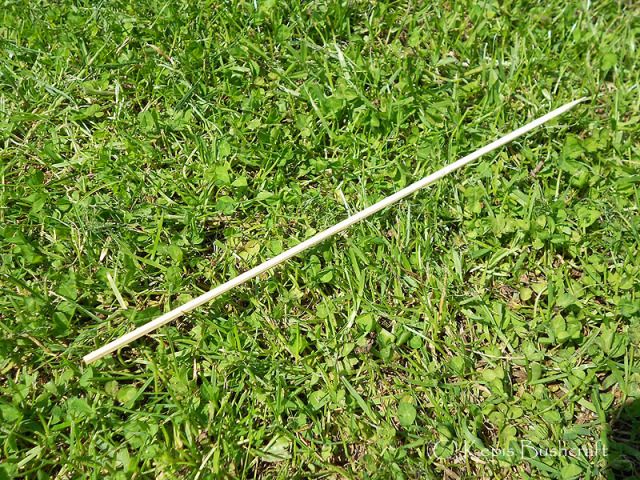

5 - select your barb, i used a bamboo skewer, but bone, thorns and a whole host of things also work



6 -figure out the length of barb you want and cut slightly over size, whittle the side that will face the shaft square for a better fit

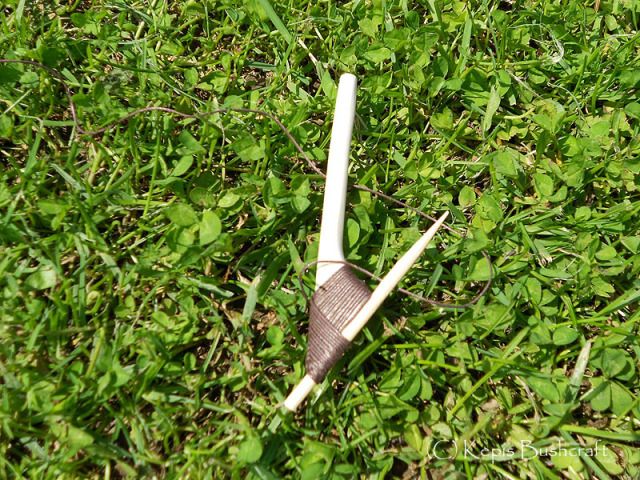

7 - start to whip it over, i hope the photo shows the process, i tried to video it, but the hook was small and my hands are big, I'll try again if people want me to?, the whipping is a simple one and a study of the photo should show how it's done, as with whipping things in general, the beginning is the hardest part



8  - when you reach the top, whip up the shank and do a couple of tucks on the cord to secure




9 - a completed hook

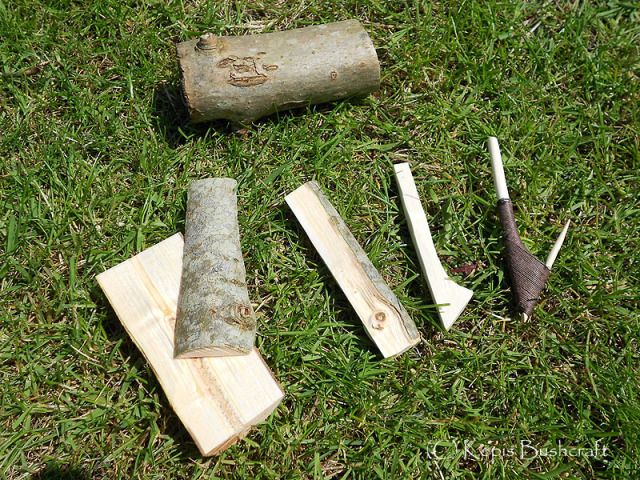

and all the steps in one photo



hope this helps peeps?.

Offline Sudz

  • Whetstone +
  • **
  • Posts: 131
Re: Fish Hook
« Reply #1 on: May 22, 2012, 10:42:31 AM »
Well done Kep! Your work has always been inspiring and top notch, Thanks for sharing the process.

Offline PetrifiedWood

  • Friction Fire Fellowship
  • Administrator
  • Belt Grinder
  • ******
  • Posts: 11473
Re: Fish Hook
« Reply #2 on: May 22, 2012, 12:35:33 PM »
Nicely done! Thanks for the tutorial. :)

Offline MATT CHAOS

  • Friction Fire Fellowship
  • Friction Fire Fellowship
  • Water Stone
  • ***
  • Posts: 3856
  • M.E.S.H. Knives
Re: Fish Hook
« Reply #3 on: May 22, 2012, 12:46:39 PM »
Nice work! :)
Jontok Bushy Approved    Member#28
1st Aid/CPR/AED Wilderness 1st Aid Instructor

Offline Red

  • Maker of Sub-Par Knives
  • Global Moderator
  • Water Stone
  • *****
  • Posts: 3185
  • Scorched Earther
Re: Fish Hook
« Reply #4 on: May 22, 2012, 01:06:35 PM »
thanks for the tutorial Kep :D i will do this one this weekend :D
"Big drama next few hours.. But whatever happens, no matter what they tell you.. Don't let 'em take them chains off me.."

Offline WoodsWoman

  • Diamond Stone
  • ****
  • Posts: 6797
  • Minnesota
Re: Fish Hook
« Reply #5 on: May 22, 2012, 02:12:27 PM »
Kep, you lost me at the whipping part.   Are you doing a figure 8 type wrap or something?    Where is the starting point?   Are you weaving under a line at each come-around or something?

I'm sorry... I tried to study the pictures , but I'm lost... :(

WW.
On particularly rough days when I'm sure I can't possibly endure, I like to remind myself that my track record for getting through bad days so far is 100% and that's pretty good.

Offline Kep

  • Friction Fire Fellowship
  • Whetstone +
  • **
  • Posts: 472
    • Kepis Bushcraft
Re: Fish Hook
« Reply #6 on: May 22, 2012, 02:25:39 PM »
Kep, you lost me at the whipping part.   Are you doing a figure 8 type wrap or something?    Where is the starting point?   Are you weaving under a line at each come-around or something?

I'm sorry... I tried to study the pictures , but I'm lost... :(

WW.

Here you go, found this on YT


Offline OutdoorEnvy

  • Water Stone
  • ***
  • Posts: 4046
  • Outdoor Junky Approved
    • OutdoorEnvy
Re: Fish Hook
« Reply #7 on: May 22, 2012, 02:47:03 PM »
Nice Kep,

Although...

We have yet to see if it will actually land a fish,  will that be in part 2?

 ;D
Proverbs 27:17    "As iron sharpens iron, a friend sharpens a friend"
http://outdoorenvy.blogspot.com/

Offline MnSportsman

  • Diamond Stone
  • ****
  • Posts: 6327
  • Just call me, JB, it is easier to type. ;)
Re: Fish Hook
« Reply #8 on: May 22, 2012, 04:39:02 PM »
Kep,


 It was good of ya ta post this! I expect ya should have a lot of entries now in the other one(Topic), right?
;)


Here it is:
http://bladesandbushcraft.com/index.php?topic=1336.new;topicseen#new


 & I believe there is about a week left for everyone to submit their efforts, good or bad.
;)


I am "behind" on this particular "task", but now that I see all the interest here. That topic should be "booming"!
:D

I love being out in the woods!   I like this quote from Mors Kochanski - "The more you know, the less you carry". I believe in the same creed, & think  "Knowledge & honed skills" are the best things to carry with ya when you're out in the wilds. They're the ultimate "ultralight" gear! ;)

Offline madmax

  • Belt Grinder
  • *****
  • Posts: 10027
  • The Phoenix
Re: Fish Hook
« Reply #9 on: May 23, 2012, 08:01:14 AM »
Kep, that was just 2 thumbs up. :thumbsup: :thumbsup:  Great tut.
